Vascular Access

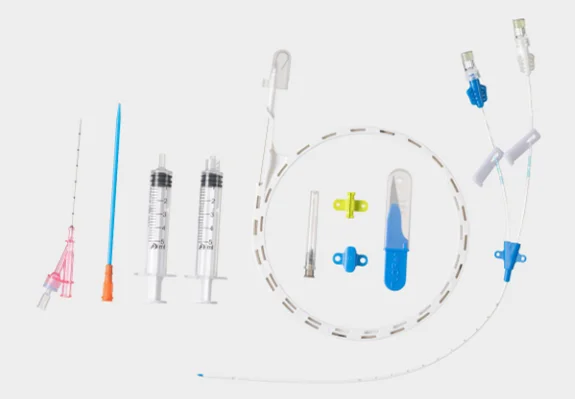

Central Venous Catheter Kit

TPU catheter with good biocompatibility decreases infection rate, smooth inner and outer wall decreased thrombus
formation and placement resistance.
Soft blue tip reduces trauma to vessel, makes it easy to entry into the puncture point.
Excellent radiopacity of the catheter makes it easy and safe for operation
Soft flexible J-tip NiTi guidewire is anti-kinking to reduce damage.
Butterfly clip: special inner buckle structure design makess the clip and catheter fit more closely, avoid the catheter
loosen and fall off.
There are three different sharp needles, including Y-mode needle, I-mode needle and new cannula needle, to reduce the puncture resistance and damage.

Type	Catheter OD	Catheter length(cm)	Dialator	Guidewire	Cat. No
Single Lumen	22Ga	8	4Fr*5cm	0.018*60cm	CVMY12208
		13	4Fr*5cm	0.018*60cm	CVMY12213
		16	4Fr*5cm	0.018*60cm	CVMY12216
		20	4Fr*5cm	0.018*60cm	CVMY12220
		30	4Fr*5cm	0.018*60cm	CVMY12230
	20Ga	13	4Fr*5cm	0.021*60cm	CVMY12013
		16	4Fr*5cm	0.021*60cm	CVMY12016
		20	4Fr*5cm	0.021*60cm	CVMY12020
	18Ga	13	5.5Fr*6cm	0.021*60cm	CVMY11813
		16	5.5Fr*6cm	0.021*60cm	CVMY11816
		20	5.5Fr*6cm	0.021*60cm	CVMY11820
	16Ga	16	6.5Fr*10cm	0.035*60cm	CVMY11616
		20	6.5Fr*10cm	0.035*60cm	CVMY11620
		30	6.5Fr*10cm	0.035*60cm	CVMY11630
	14Ga	16	8Fr*10cm	0.035*60cm	CVMY11416
		20	8Fr*10cm	0.035*60cm	CVMY11420
		30	8Fr*10cm	0.035*60cm	CVMY11430
	12Ga	16	9Fr*10cm	0.035*60cm	CVMY11216
		20	9Fr*10cm	0.035*60cm	CVMY11220
		30	9Fr*10cm	0.035*60cm	CVMY11230

Type	Catheter OD	Catheter length(cm)	Dialator	Guidewire	Cat. No
Double Lumen	4Fr	5	5.5Fr*6cm	0.021*60cm	CVMY24005
		8	5.5Fr*6cm	0.021*60cm	CVMY24008
		13	5.5Fr*6cm	0.021*60cm	CVMY24013
		16	5.5Fr*6cm	0.021*60cm	CVMY24016
		20	5.5Fr*6cm	0.021*60cm	CVMY24020
	5Fr	13	5.5Fr*6cm	0.021*60cm	CVMY25013
		16	5.5Fr*6cm	0.021*60cm	CVMY25016
		20	5.5Fr*6cm	0.021*60cm	CVMY25020
	6Fr	13	6.5Fr*8cm	0.021*60cm	CVMY26013
		16	6.5Fr*8cm	0.021*60cm	CVMY26016
		20	6.5Fr*8cm	0.021*60cm	CVMY26020
	7Fr	16	8.5Fr*10cm	0.035*60cm	CVMY27016
		20	8.5Fr*10cm	0.035*60cm	CVMY27020
		30	8.5Fr*10cm	0.035*60cm	CVMY27030
	8Fr	16	8.5Fr*10cm	0.035*60cm	CVMY28016
		20	8.5Fr*10cm	0.035*60cm	CVMY28020
		30	8.5Fr*10cm	0.035*60cm	CVMY28030

Type	Catheter OD	Catheter length(cm)	Dialator	Guidewire	Cat. No
Triple lumen	4Fr	8	5.5Fr*6cm	0.021 *60cm	eVMY34008
		13	5.5Fr*6cm	0.021*60cm	eVMY34013
		16	5.5Fr*6cm	0.021*60cm	eVMY34016
		20	5.5Fr*6cm	0.021*60cm	eVMY34020
	5.5Fr	8	6.5Fr*8cm	0.021 *60cm	eVMY35508
		13	6.5Fr*8cm	0.021*60cm	eVMY35513
		16	6.5Fr*8cm	0.021*60cm	eVMY35516
		20	6.5Fr*8cm	0.021*60cm	eVMY35520
	7Fr	16	8.5Fr*10cm	0.035*60cm	eVMY37016
		20	8.5Fr*10cm	0.035*60cm	eVMY37020
		30	8.5Fr*10cm	0.035*60cm	eVMY37030
	8.5Fr	16	9Fr*l0cm	0.035*60cm	eVMY38516
		20	9Fr*l0cm	0.035*60cm	eVMY38520
		30	9Fr*l0cm	0.035*60cm	eVMY38530
Quadruple lumen	8.5Fr	20	9Fr*l0cm	0.035*60cm	eVMY48520
		30	9Fr*l0cm	0.035*60cm	eVMY48530

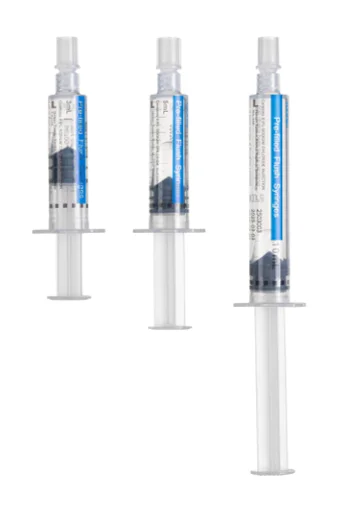

The first choice for flushing and locking of vascular access device (VADs), including IV cannula, eve, PICC, huber needle, implantable port, etc.

Moderate sliding force, smooth and even pushing, easy to operate and safer.

Positive pressure design of piston effectively reduces the probability of blood return blockage.

Locking ringe design prevents the flushing solution from being contaminated during transportation and storage.

Prefilled with 0.9% sodium chloride solution, no need for manual preparation, improve work efficiency.

DE HP-free, preservative-free, moist heat sterilization.

Easy to use.

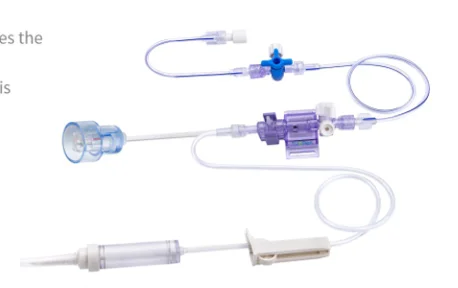

Wide Compatibility: The transducers are compatible with different monitors, ensuring seamless integration with the systems.

Precise Monitoring: Provides accurate and consistent real-time invasive blood pressure measurement for critical care.

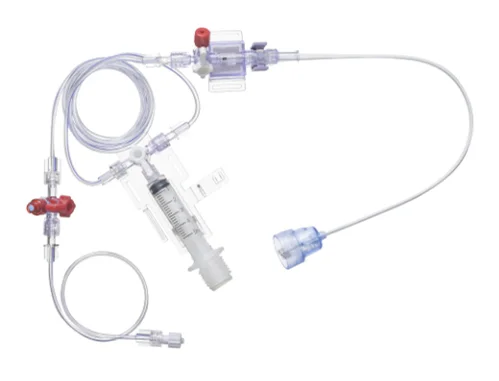

Closed type: The closed design of the entire system greatly reduces the infection risk and simplifies the blood collection procedures.

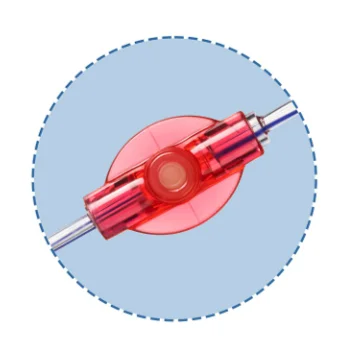

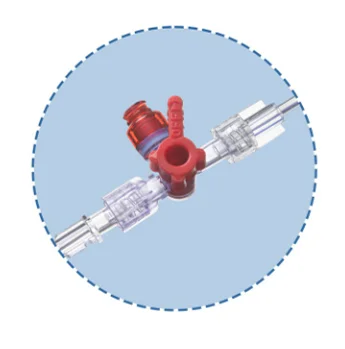

Special blood collection valve design avoids the risk of thrombosis caused by residual blood in the cavity.

The tube length and color can be customized.
